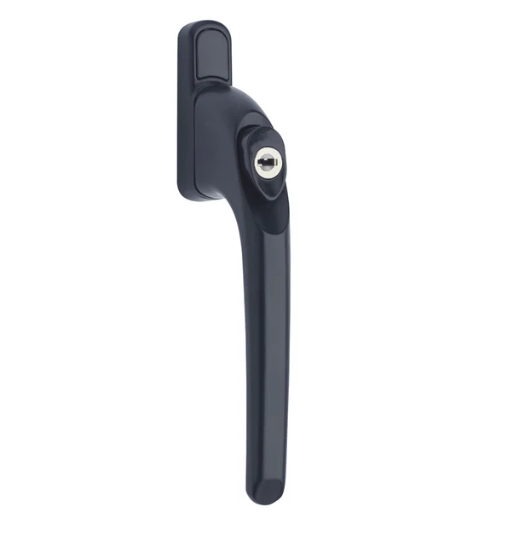

Replacing a uPVC espag window handle is a simple DIY task that can be completed in just a few minutes. Whether your handle has become loose, broken, or simply needs an upgrade, this step-by-step guide will show you exactly how to remove, measure, and install a new espag window handle safely and correctly.
Tools You Will Need to Remove a UPVC Espag Window Handle
Before starting, gather the following basic tools:
• Measuring tape or ruler
• Utility knife
• Phillips screwdriver or drill
Having the right tools ready will make the process smoother and prevent damage to your window frame.
Step 1: How to Remove a uPVC Espag Window Handle
1. Remove the screw cover cap
Begin by lifting or prying off the small cover that hides the first screw at the base of the handle.
2. Unscrew the first fixing
Use a screwdriver to remove the first screw.
3. Open the window to access the second screw
Turn the handle into the open position to reveal the second fixing screw. Remove this screw in the same way.
4. Detach the handle
Once both screws are removed, gently pull the handle away from the window frame. The old espag handle should slide off easily.
Step 2: How to Measure Your Espag Window Handle
Measuring the handle correctly ensures you order the right replacement. Espag window handles are fairly universal, so the key dimension to check is the spindle length.
• The spindle is the square metal bar that extends from the back of the handle.
• Measure from the underside of the handle’s base to the tip of the spindle using a ruler or measuring tape.
• Typical spindle lengths range from 10mm to 40mm, depending on the window type.
Make a note of your measurement. You will need it when ordering your new handle.
Step 3: Choosing the Correct Replacement Handle
Once you know your spindle length, you can select a replacement handle that fits perfectly.
At FixTrade.co.uk, we stock a wide range of uPVC espag window handles in various styles, finishes, and sizes. Simply choose the handle design you prefer and select the matching spindle length from the options available.
All of our espag handles are designed for easy installation and are compatible with most standard uPVC windows.
Step 4: How to Install a New Espag Window Handle
Installing your new handle is just as simple as removing the old one.
1. Align the handle
Make sure your new handle is in the same locked or unlocked position as the window mechanism.
2. Insert the spindle
Slide the spindle into the window lock mechanism until the handle sits flush against the frame.
3. Secure with screws
Reinsert and tighten both fixing screws until the handle feels firm and secure.
4. Test the handle
Open and close the window to confirm that the locking mechanism moves smoothly. Insert the key and turn it to check that it locks and unlocks the button correctly.
5. Fit the screw cover cap
Snap the small cap back over the top screw to complete the installation and give the handle a neat, finished look.
Your new espag window handle should now be fully fitted and ready to use.
Maintenance Tips
To keep your new window handle working smoothly:
• Lubricate the locking mechanism once or twice a year with a light spray of silicone oil.
• Avoid overtightening screws to prevent damage to the handle base.
• If you notice stiffness or resistance, clean the area around the handle and test again.
Regular maintenance ensures long-term performance and prevents unnecessary wear.
Replacing a uPVC espag window handle is one of the easiest home maintenance tasks you can do yourself. With just a few tools and the right measurements, you can install a new handle in minutes. Improving both the appearance and functionality of your windows.
At FixTrade.co.uk, we supply an extensive selection of espag uPVC window handles in a range of colours and finishes, all designed for quick installation and reliable performance. Browse our full collection online to find the perfect match for your windows.
