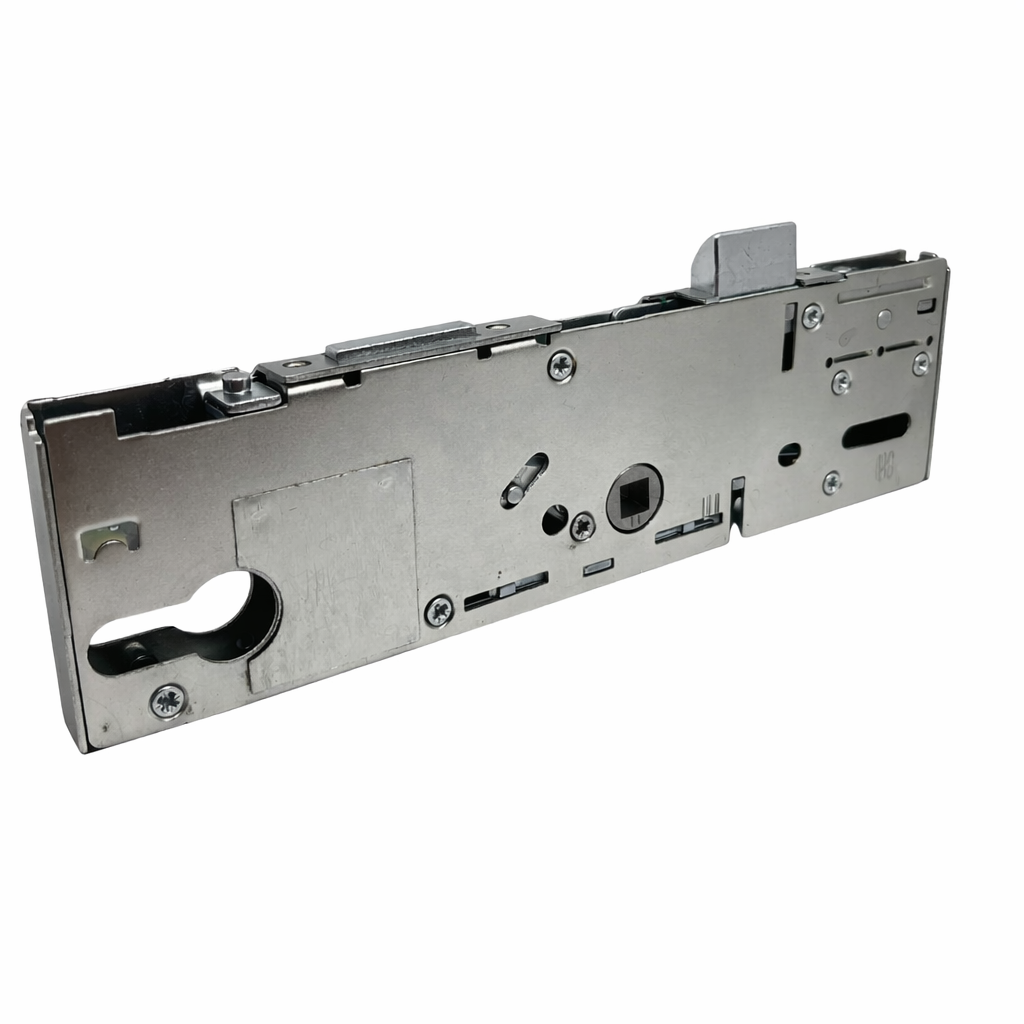

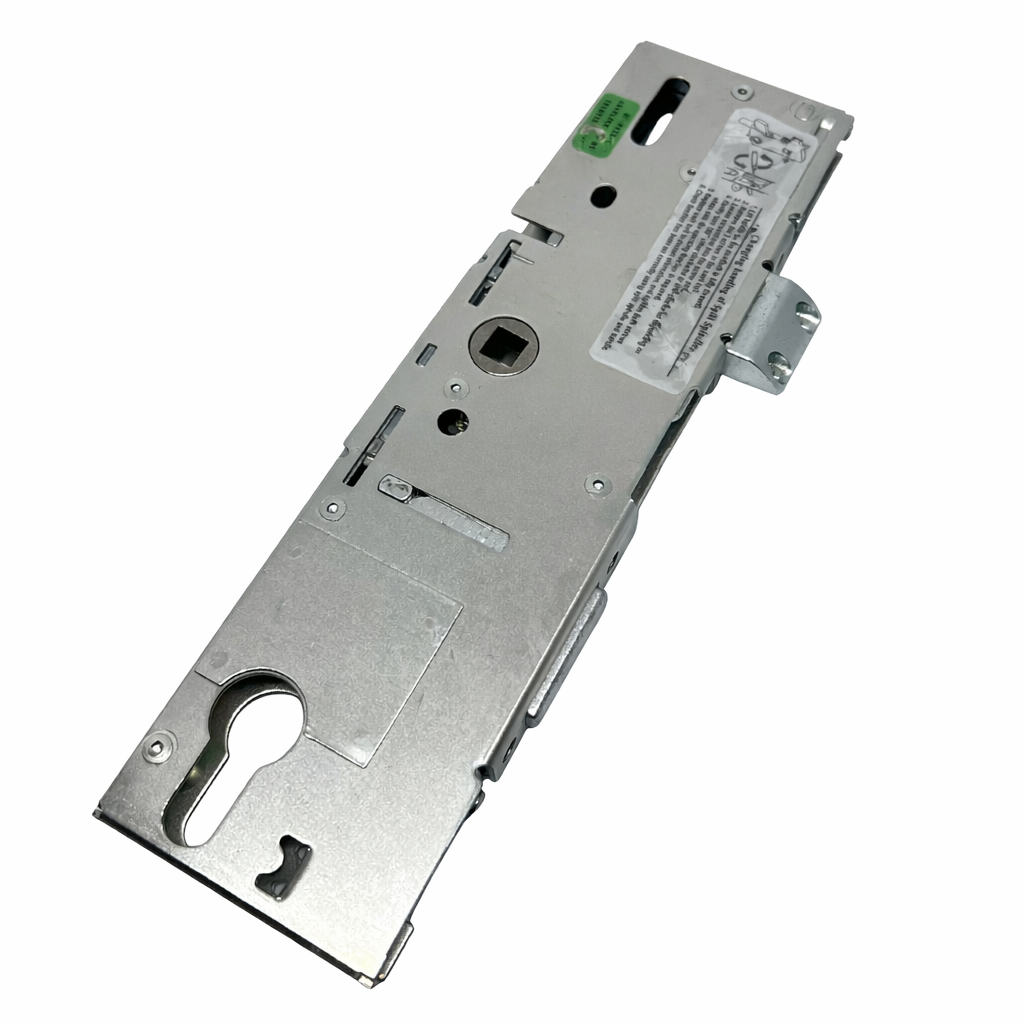

ERA uPVC Door Lock Gearbox Centre Case – 45mm Backset / 92mm PZ
This replacement centre gearbox is designed for use with multipoint locking systems from ERA, Laird, Saracen, Surelock, and Fab & Fix.
Positioned at the heart of the lock mechanism, the centre case is operated directly by the door handle and is commonly the first component to fail when a door lock becomes stiff, unreliable, or stops working altogether. Replacing the gearbox is a simple, cost-effective repair, often requiring only the removal and refitting of a few screws.
Key Features
- Replacement centre case gearbox for multipoint door locks.
- Compatible with ERA, Laird, Saracen, Surelock, and Fab & Fix systems.
- Fully reversible latch – Suitable for left or right-handed doors.
- Non-handed design for universal fitting.
- Supports lever/lever operation.
- Can be used with lever/pad handles when fitted with a split spindle.
- Straightforward installation using existing fixings.
- Cost-effective alternative to replacing the full lock mechanism.
Compatibility:
-
Backset: 45mm
-
PZ Centres: 92mm
Product Details:
-
Brand: ERA
- Backset: 45mm
- PZ Centres: 92mm
- Deadbolt Thickness: 7mm
- Full Measurements: (See Diagram Above)
-
Manufacturer ID: N/A
-
Range: Multipoint Locks
